Compatible with the following receiver:
SLE46C-70.K2/4P | 50121916

Series: 46C
Type: 2,IEC/EN 61496
Operating range: 5-70m
Light source: LED, Red
Response time: 2.5 ms
Protective Circuit: Polarity reversal protection, Short circuit protected
Supply voltage: 24 VDC 20 - 20% Incl. residual ripple
Number of activation inputs: 1
Voltage type: DC
Active Switching State: High
Type of connection: Cable
Cable length: 2,000 mm
Sheathing material: PUR
Type of display: LED
Number of LEDs: 2
Environmental test: ECOLAB
Degree of protection: IP 67, IP 69K
Certifications: c UL US, TUV Sud
Standards applied: IEC 60947-5-2, IEC/EN 61496

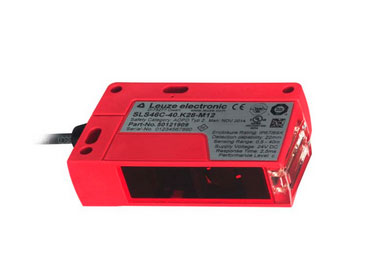

Modular all-rounder

The SLS 46C protective sensor can be optimally integrated thanks to its modular design and operating ranges of up to 70 m. Alignment aids and status LEDs visible from all sides support simple handling.

Red light and infrared light models with operating ranges of up to 40 m or up to 70 m
Solid plastic housing with degree of protection IP 67 / IP 69K
Temperature range from -30 through 60 degrees Celsius
Status LEDs visible from all sides
bright Vision: quick alignment due to an especially bright light spot
Clearly visible alignment indicator in the front screen of the receiver
Integration via M12 plug or cable

Additional Info

Brand Leuze
Component Type Transmitter
Connection Cable
Leuze Product Series Leuze SLS 46C Transmitter Activation Input
Operating Range 5-70 m
Safety Level Type 2
